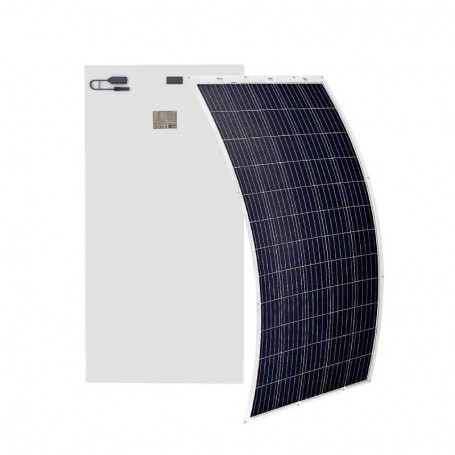

SUNMAN
310w Flexible
Sunman Energy has pioneered the creation and commercialisation of lightweight and flexible e-Arc modules. These characteristics are only possible due to their innovative construction, without the use of glass or aluminium structure, replacing it with an organic polymer, extremely resistant to both climate change and any type of impact on the module.
The e-Arc 310w flexible modules promise to revolutionise the PV market and be the solution for all installations that, until now, could not be applied. Whether due to the fragility of older roofs, the typology and ergonomics of new ones, or even the lack of space.
The extremely simple and agile installation of Sunman's e-Arc 310w means that it can even be installed on balconies or pergolas, making it the solution to any restriction customers may have.
THE ADVANTAGES :
Ultralight
It weighs just 5kg and is 70% lighter than any conventional module
Quick installation
Given their characteristics, e-Arc modules can even be glued to roofs. No need for drilling or individual grounding of the modules, cutting installation time by more than 40 per cent
Resistance
The extremely resistant organic polymer coating applied to e-Arc makes it the first flexible modules to pass the most stringent resistance tests worldwide
Warranty
12-year product warranty and 25-year linear warranty
DID YOU GET CURIOUS ?
WATCH THE VIDEO :
Rated Power | 310 W |
---|---|
Open Circuit Voltage (Voc) | 40.50 V |
Current at Pmax (Imp) | 9.31 A |
Voltage at Pmax (Vmp) | 33.3 V |
Short Circuit Current (Isc) | 9.81 A |
Type of cells | Monocrystalline |
Dimensions | 2009mm × 885mm × 2mm (L × W × H) |
Weight | 5 kg |
Product warranty | 12 years |
Linear production guarantee | 25 years |
