SMA Tripower STP Core 2 Grid-tie inverter

SMA Tripower STP Core 2 Grid-tie inverter

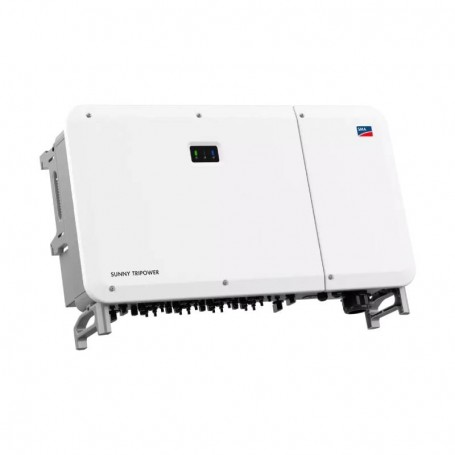

The 110Kw SMA Tripower Core 2 AFCI STP-110-60 grid-tie inverter is so far the most powerful in the Tripower range. It has 12 MPPTS with two inputs each and AFCI (Arc Flash Protection).


Including €3.96 for ecotax

VAT included


Sunny Tripower Core2 STP 110-60

SMA is a German manufacturer with over 40 years of experience. It is one of the oldest companies in the photovoltaic market and one of the world's leading manufacturers of solar inverters for self-consumption, off-grid and micro-grid. This is only possible thanks to the quality and excellence of German manufacturing, which has kept SMA at the forefront of solar technology, holding more than 1600 patents. Proof of this are the many awards it has won over the years and, above all, the fact that today there are still SMA systems that have been working for more than 20 years without any problems.

The company has been listed on the Frankfurt stock exchange since 2008 and is part of the TecDAX and MDAX indices, which in themselves underpin the durability, quality and economic strength that the company has had, has and will have.

The 110-60 SMA Tripower STP Core 2 AFCI is designed for installations ranging from small industrial to megawatts. With a power output of 110 kW and 12 MPPTS with two inputs each, it provides very effective solar coverage both in the open field and in rooftop applications with different inclinations. In addition, the integrated SMA ShadeFix software automatically and constantly optimises the performance of the photovoltaic plant, even when clouds pass by, causing areas of shade.

It also has the SMA Smart Connected system, which detects faults or malfunctions in the system at an early stage, enabling preventive action to be taken and reducing the risk of downtime.

Tripower Core 2 STP110-60, German quality and reliability at your service.

sma monitorização



98.6% system efficiency


More flexibility
For large systems up to MW


DC input
12 MPPTS with 2 inputs each

sma shadefix

Proteção contra arco elétrico (AFCI)


SMA Smart Connected
Analysis and optimisation integrated into the system


SMA ShadeFix
Optimises the system even in overload zones


Output Power  110 000 W
Input Power  165 000 Wp
Number of phases 3 - Three-phase
MPPT inputs 12
Vox max 1100 V
Vmp Range 150 V / 188 V
Dimensions 1117 × 682 × 363mm (L × W × H)
Weight 93.5kg
Warranty 5-year guarantee (with the possibility of extension to 10, 15 or 20 years)


Wi-Fi included
93.50 kg
