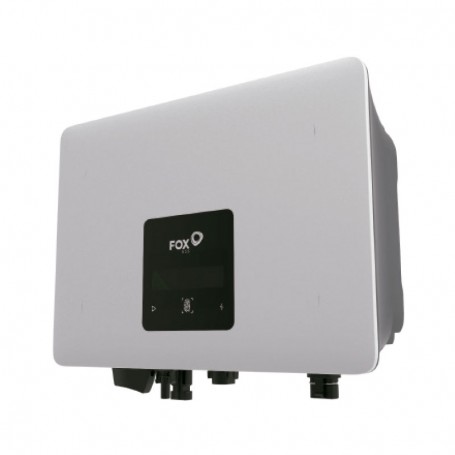

Fox ESS S2-1000 Grid-Tie Inverter
FOX-ESS offers an unmatched range of single-phase inverters.
The single MPPT S-series models are smaller and more compact, with an IP65 rating.
The Fox ESS S2-1000 grid-tied inverter is single-phase, reliable, efficient and allows you to do Wi-Fi network monitoring.
€341.46
Including €0.34 for ecotax
VAT included
Fox ESS S2-700
The Fox ESS range of single-phase inverters offers very significant efficiency and performance. The Fox ESS S-700 grid-tie inverter, with an independent MPPT, is small and compact and has a very low starting voltage of 60V, which ensures that the maximum amount of energy is collected from the solar panels. It offers an efficiency of 97.20% and a 10-year guarantee.
ADVANTAGES
1 MPPT
WIFI
EASY INSTALLATION AND CONFIGURATION
IP65
| Technical Data | |
|---|---|
| AC output power | 700 W |
| DC Max input power | 1050 W |
| Number of phases | 1 - Monofásico |
| Number of MPPT inputs | 1 |
| Nominal voltage | 360 V |
| MPPT voltage range | 50-400 V |
| Starting voltage | 60V |
| General Data | |
|---|---|
| Dimensions | 220 × 290 × 116mm |
| Weight | 5.4kg |
| Warranty | 10 |
| Documentation | |
|---|---|
| Datasheet |  |
| Output Power | 1000w |
|---|---|
| Input Power | 1500Wp |
| Number of phases | 1 - Single-phase |
| MPPT inputs | 1 |
| Voc max | 500V |
| Vmp Range | 50~480V |
| Start-up Voc | 60V |
| Dimensions | 290 × 220 × 116mm (L × W × H) |
| Weight | 5.4kg |
| Warranty | 10-year product warranty |
|
Monitoring |
Wi-Fi and TI consumption 10m included |
