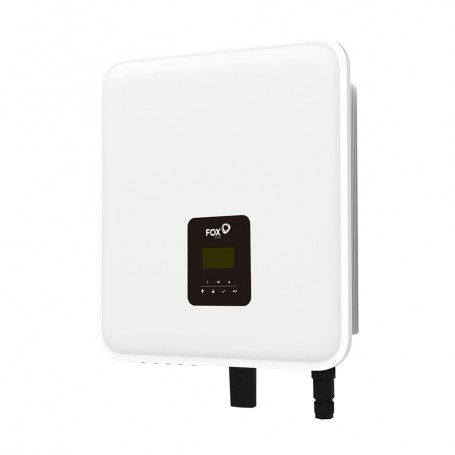

FOX ESS KP10 1ph hybrid grid-tie inverter (includes WiFi)
FOX ESS K-series hybrid grid-connected inverter with 10 kW of power, 4 independent MPPTs, single-phase. Packed with advanced features and compatible with the Fox ESS range of high-voltage batteries, the Fox K-Series is an inverter designed for large-scale, single-phase solar photovoltaic systems. This inverter comes with WiFi included.
Including €1.50 for ecotax
Fox ESS KP10 1ph Hybrid ( WiFi )
The Fox K-Series KP10 is a new generation single-phase hybrid inverter, ideal for large-scale solar systems. Compatible with Fox ESS high-voltage batteries, this inverter offers a maximum charge/discharge current of 50A and has an efficiency of 97.4%. With an IP65 rating, it is resistant to outdoor installations and has WiFi included. With 4 MPPTs, it is perfect for optimising the output of large solar installations with different orientations.
ADVANTAGES
SINGLE-PHASE
4 MPPT
WIFI INCLUDED
HYBRID
IP65
| Technical data | |
|---|---|
| Output power AC | 10000 W |
| EPS output power | 10000 W |
| Number of phases | 1 - Single-phase |
| Nominal input voltage | 360 V |
| Minimum starting voltage | 75V |
| MPPT voltage range | 80-500V |
| Max. DC Voltage | 600V |
| MPPT Number | 4 |
| Strings per MPPT | 4/4 |
| Max. Short Circuit Current | 20A |
| Maximum input DC power | 13500 W |
| General Data | |
|---|---|
| Maximum efficiency | 97.4% |
| Weight | 29kg |
| Dimensions | 527 × 450 × 208mm (A × L × P) |
| Product warranty | 5-year basic warranty |
| WiFi included | Included |
| Consumption meter | Optional |
| Compatible batteries | Fox ESS HV |
| Documentation | |
|---|---|
| Datasheet |  |
