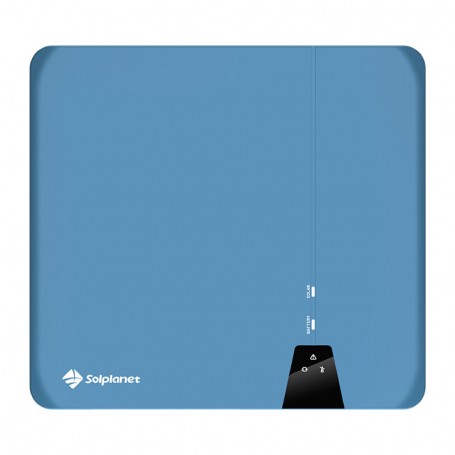

Solplanet ASW4000H-S2 Hybrid grid-tie inverter
Use the power of the sun, day and night with Solplanet's series of single-phase hybrid inverters.
The new ASW H-S2 single-phase hybrid inverter series brings the latest updates that match the distinctive design and easy installation.
Stylish, powerful and versatile.
Including €1.57 for ecotax
SOLPLANET
ASW 4000H-S2
This powerful and reliable hybrid inverter series, delivers the highest efficiency by using advanced two-phase control technology and an improved load shedding process. System upgrades detect grid disconnection in less than 10 ms and incredibly fast parallel off-grid switching.
In addition, the intelligent and precise EMS control continuously monitors and adjusts PV panel power, battery power, charging power and online power.
Through IP66 certification for indoor or outdoor installations, performance is ensured regardless of weather conditions.
Includes 2 independent MPPT, each with 16A maximum input current.
The included plug and play Wi-Fi stick makes the installation connection easy to follow and allows monitoring of all processes in real time with the easy-to-use Solplanet app.
THE ADVANTAGES :
Protection
Type II protection against DC/AC current overvoltages
IP66 rating
Designed for outdoor use
Easy to install
Compact and easy to install
Remote monitoring
Configuration and operation via the Solplanet application
ARE YOU CURIOUS?
WATCH THE VIDEO :
Power Output | 4 000 W | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power Input | 6 500 Wp | ||||||||||||||||||||||
Number of phases | 1 - Single-phase | ||||||||||||||||||||||
MPPT inputs | 2 | ||||||||||||||||||||||
Vox max | 550 V | ||||||||||||||||||||||
Vmp Range | 40~530 V | ||||||||||||||||||||||
Start-up Voc | 40 V | ||||||||||||||||||||||
Compatible Batteries | Pylontech 48v | ||||||||||||||||||||||
Dimensions | 483 × 455 × 193.5mm (L × W × H) | ||||||||||||||||||||||
Weight | 25.1 kg | ||||||||||||||||||||||
Warranty |
|
||||||||||||||||||||||
Monitoring |
Wi-Fi included | ||||||||||||||||||||||
Consumption meter |
Meter Included |
