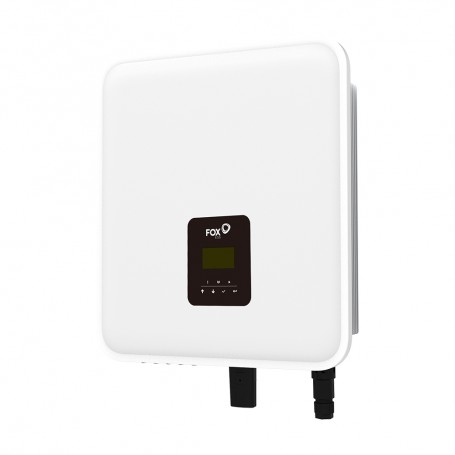

FOX ESS KH8 1ph hybrid grid-tie inverter (WiFi included)

FOX ESS KH8 1ph hybrid grid-tie inverter (WiFi included)

FOX ESS K-Series hybrid grid-tie inverter, with 8 kW of power, 3 independent MPPT, single-phase. Packed with advanced features and compatible with Fox ESS range of high-voltage batteries, the Fox K-Series is an inverter designed for large-scale, single-phase solar photovoltaic systems. This inverter comes with WiFi included.

€1,648.51
VAT included

Fox ESS KH8 1ph Hybrid ( WiFi )

The Fox K-Series KH8 is a new generation single-phase hybrid inverter, ideal for large-scale solar systems. Compatible with Fox ESS high-voltage batteries, this inverter offers a maximum charge/discharge current of 50A and has an efficiency of 97.4%. With an IP65 rating, it is resistant to outdoor installations and has WiFi included. It has a low starting voltage of 75V and battery expansion capacity of up to more than 30kWh. With four MPPTs, it is perfect for optimizing the output of large solar installations with different orientations.

ADVANTAGES

sem som

MONOFASIC

3 MPPT

3 MPPT

meter

WIFI INCLUDED

Hibrido

HYBRID

monitorização

IP65



Technical data
Output power AC 8000 W
EPS output power 8000 W
Number of phases 1 - Monofásic
Nominal input voltage 360 V
Minimum starting voltage 75V
Operating voltage range (Vmp) 80-500V
Maximum input voltage 600V
MPPT Number 3
Number of inputs per MPPT 3/3
Maximum input current (Isc p/MPPT) 20A
Nominal input current (Imp p/MPPT) 16A
Maximum input power 13500 W
General Data
Maximum efficiency 97.4%
Weight  29kg
Dimensions 527 × 450 × 208mm (A × L × P)
Product warranty 5-year basic warranty
WiFi included Included
Consumption meter Optional
Compatible batteries Fox ESS HV
Documentation
Datasheet pdf
IVRH0160
368 cm
325 cm
145 cm
29 kg
