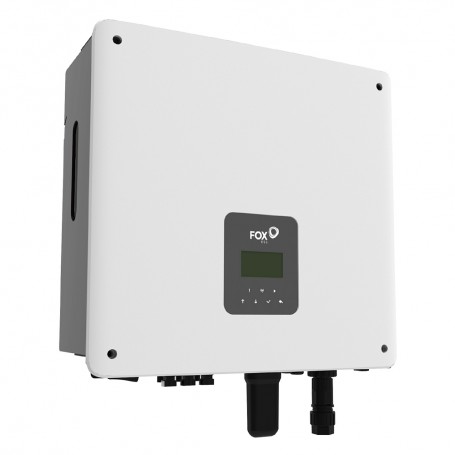

Fox ESS H1-6.0-E-G2 single-phase hybrid grid-tie inverter
The FOX ESS 6.0 kW single-phase hybrid grid-tie inverter, with 2 independent MPPTs, a maximum current of 20A per string, and 96.23% efficiency. Includes WiFi and IT consumption of 10 meters.
Including €1.40 for ecotax
Fox ESS H1-6.0 - E-G2
Fox Ess hybrid inverters are manufactured to a high quality standard to provide maximum performance, efficiency, reliability and longevity. The H1 - 4.6- E-G2 hybrid grid-tie inverter is designed for residential applications. With 2 MPPT, the H1-4.6 G2 maximizes energy harvesting from multiple photovoltaic modules, and being storage-ready, it is compatible with FOX ESS high-voltage batteries. The plug-and-play design simplifies installation, while integrated WiFi enables remote monitoring and management via the Fox ESS app. Real-time data and system alerts ensure optimum performance and user convenience.
ADVANTAGES
2 MPPT
WIFI
LCD DISPLAY
IP65
| Technical Data | |
|---|---|
| AC output power | 6000 W |
| AC Max input power | 12000 VA |
| Number of phases | 1 - One-phase |
| Number of MPPT inputs | 2 |
| Nominal voltage | 360 V |
| MPPT voltage range | 80-550 V |
| Starting voltage | 75 V |
| General Data | |
|---|---|
| Dimensions | 434 × 418 × 185mm |
| Weight | 22kg |
| Warranty | 10 years |
| Documentação | |
|---|---|
| Datasheet |  |
