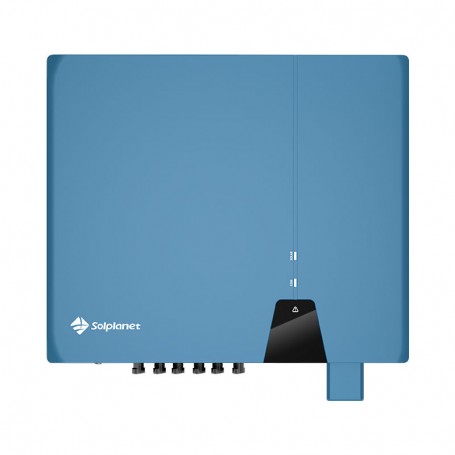

Solplanet ASW 30K-LT-G3 grid inverter
The LT-G3 three-phase inverter series features improved, reference models with a classic and powerful design.
The Solplanet ASW 30K-LT-G3 grid-tied inverter offers high performance with the latest innovations and upgrades that give it flexibility, power and reliability.
It is a new reference for large-scale commercial and industrial photovoltaic systems.
Including €1.23 for ecotax
SOLPLANET
ASW 30K-LT-G3
The three-phase inverters ASW 30K LT-G3 are perfectly compatible with the innovation of larger photovoltaic modules of high power.
Manufactured with 3 independent MPPT and up to 40A nominal input current per MPPT allows, the installation with more flexibility for high power, bifacial and large size modules. A wide range of MPPT with 150% oversizing of the PV system ensures high energy yield and flexibility.
Compact mounting with IP66-rated design provides solid performance and long-term protection against the impact of harsh environments.
It is equipped with Phoenix Contact DC connectors, which ensure quick and easy installation, configuration and operation via Solplanet applications.
Plug and Play Wi-Fi and 4G pens allow easy monitoring of up to five inverters and can support users to monitor 24/7 energy data, including customers' household data through the optional "Night Monitoring" feature.
The ASWEI smart cloud-based app provides effective analysis and usage wherever you are.
THE ADVANTAGES :
Protection
Type II protection against DC/AC current overvoltages
IP66 rating
Designed for outdoor use
Easy to install
Compact and easy to install
Remote monitoring
Configuration and operation via the Solplanet application
ARE YOU CURIOUS?
WATCH THE VIDEO :
| Output Power | 30000w |
|---|---|
| Input Power | 45000Wp |
| Number of phases | 3 - Three-phase |
| MPPT inputs | 3 |
| Vox max | 1100V |
| Vmp Range | 180~1000V |
| Start-up Voc | 160V |
| Dimensions | 543 × 520 × 235mm (L × W × H) |
| Weight | 29kg |
| Warranty | 10-year product warranty (extendable up yo 20 years) |
|
Monitoring |
Wi-Fi included |
Datasheet
