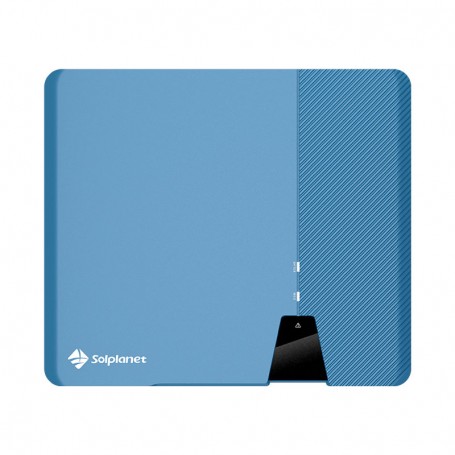

Solplanet ASW 13K-LT-G2 Pro grid inverter
The models of the LT-G2 series, are reference three-phase inverters of the Pro version.
The grid-tied inverter Solplanet ASW 13K-LT-G2 Pro offers high performance with the latest innovations and updates that give it flexibility, power and reliability.
It is a new reference for large-scale residential, commercial and industrial photovoltaic systems.
Including €0.73 for ecotax
SOLPLANET
ASW 13K-LT-G2 Pro
The three-phase inverters ASW 13K LT-G2 Pro are perfectly compatible with the innovation of larger photovoltaic modules of high power.
Manufactured with 2 independent MPPT and up to 32A nominal input current per MPPT, they allow an installation with greater flexibility for large modules. A wide range of MPPT with 150% oversizing of the PV array ensures high energy yield and flexibility.
Compact mounting with IP66-rated design provides solid performance and long-term protection against the impact of harsh environments.
It is equipped with Phoenix Contact DC connectors, which ensure quick and easy installation, configuration and operation via Solplanet applications.
Plug and Play Wi-Fi and 4G pens allow easy monitoring of up to five inverters and can support users to monitor energy data 24/7, including customers' household data through the optional "Night Monitoring" feature.
The intelligent cloud-based ASWEI application provides efficient analysis and use wherever you are.
THE ADVANTAGES :
Protection
Type II protection against DC/AC current overvoltages
IP66 rating
Designed for outdoor use
Easy to install
Compact and easy to install
Remote monitoring
Configuration and operation via the Solplanet application
ARE YOU CURIOUS?
WATCH THE VIDEO :
| Output Power | 13000w |
|---|---|
| Input Power | 19500Wp |
| Number of phases | 3 - Three-phase |
| MPPT inputs | 2 |
| Vox max | 1100V |
| Vmp Range | 150~1000V |
| Start-up Voc | 180V |
| Dimensions | 503 × 435 × 183mm (L × W × H) |
| Weight | 17.3kg |
| Warranty | 10-year product warranty (extendable up yo 20 years) |
|
Monitoring |
Wi-Fi included |
