EOS BS4 10/05-4T 96/1000 submersible electric pump
New

EOS BS4 10/05-4T 96/1000 submersible electric pump

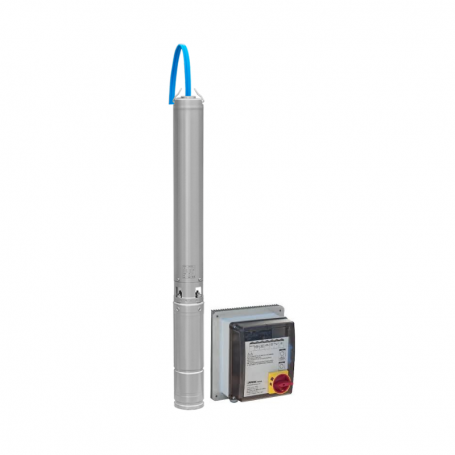

EOS BS4 10/05-4T 96/1000 electric pump with EOS 96/1000 controller, for submersible solar pump solutions. The system includes controller, pump, motor and water shortage probe.

€1,535.42
VAT included
 Out-of-Stock

Optional accessories

Solar panels




EElectric submersible pump EOS BS4
10/05-4T96/1000

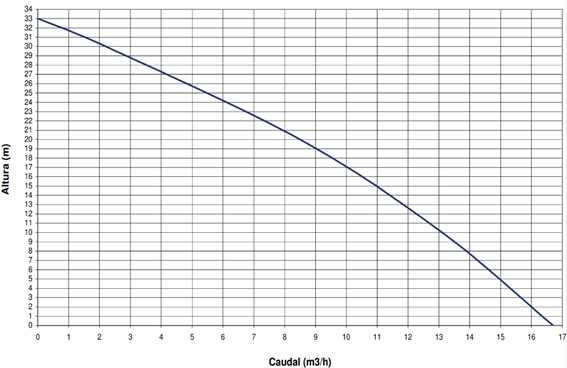

Submersible solar pumps are ideal for agriculture, autonomous irrigation, filling tanks, drinking fountains, domestic applications or hydropneumatic systems. They work directly with solar radiation, offering an economical and sustainable solution for locations without an electricity grid. With a flow rate of up to 16.5 m³/h and a nanometric height of up to 33 meters, they guarantee an efficient water supply adapted to various needs. The pumps are powered by brushless DC motors, which guarantee greater efficiency.

ADVANTAGES

sem som

DC MOTOR

TENSÃO

VOC MAX 200V

MPPT

1300W RECOMMENDED PV POWER

Hibrido

WATER SHORTAGE SENSOR INCLUDED

IP54 CONTROLLER






Controller
Nominal Power 1000 W
 Maximum DC voltage (Voc) 200 V
Recommended power PV  1300 W
Max. MPPT efficiency 99%
Strings 1
Rated Current 12.5 A
IP Protection IP54
Dimensions (CxLxA) 280x250x170 mm
Weight 3.7 kg
Warranty 2 anos
Pump
Height  950mm
Weight 4kg
Warranty 2 anos
Documentation
Data sheet pdf
BS00088
3.70 kg
