Electric submersible pump EOS BS4 4/07-4T 48/500
New

Electric submersible pump EOS BS4 4/07-4T 48/500

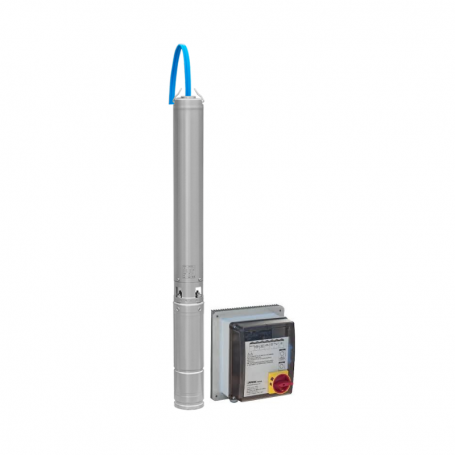

EOS BS4 4/07-3T 48/500 electric pump with EOS 36-48/500 controller, for submersible solar pump solutions. The system includes controller, pump, motor and water shortage probe.

€1,483.21
VAT included

Optional accessories

Solar panels




EElectric submersible pump EOS BS4
4/07-3T48/500


Submersible solar pumps are ideal for agriculture, autonomous irrigation, filling tanks, drinking fountains, domestic applications or hydropneumatic systems. They work directly with solar radiation, offering an economical and sustainable solution for locations without an electricity grid. With a flow rate of up to 7.1 m³/h and a nanometric height of up to 50 meters, they guarantee an efficient water supply adapted to various needs. The pumps are powered by brushless DC motors, which guarantee greater efficiency.

ADVANTAGES

sem som

DC MOTOR

TENSÃO

VOC MAX 100V

MPPT

650W RECOMMENDED PV POWER

Hibrido

WATER SHORTAGE SENSOR INCLUDED

IP54 CONTROLLER






Controller
Nominal Power 500 W
 Maximum DC voltage (Voc) 100 V
Recommended power PV  650 W
Max. MPPT efficiency 99%
Strings 1
Rated Current 10 A
IP Protection IP54
Dimensions (CxLxA) 280x250x170 mm
Weight 3.7 kg
Warranty 2 anos
Pump
Height  950mm
Weight 4kg
Warranty 2 anos
Documentation
Data sheet pdf
BS00081
15 kg
